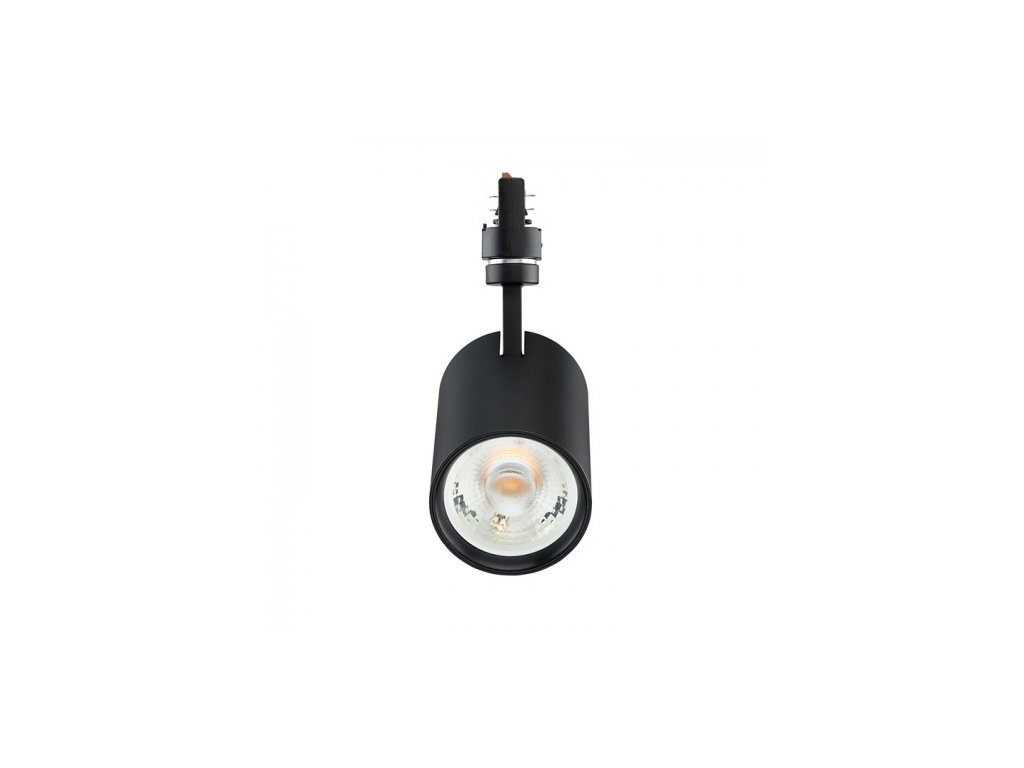

ST151T LED30S/940 WB BK 3000Lm 38D CoreLine Projector gen3 Philips

Detailní popis produktu

General Information

Beam angle of light source	38 °
Light source color	940 neutral white
Light source replaceable	No
Number of gear units	1 unit
Driver/power unit/transformer	Power supply unit
Driver included	Yes
Optic type	Beam angle 38°
Luminaire light beam spread	38°
Control interface	-
Connection	Track
Cable	-
Protection class IEC	Safety class I
Glow-wire test	Temperature 650 °C, duration 30 s

Flammability mark	-
CE mark	CE mark
ENEC mark	ENEC mark
Warranty period	5 years
Constant light output	Yes
Number of products on MCB of 16 A type B	30
Photobiological risk	Photobiological risk group 0 @ 200mm to EN62471
Photobiological risk specification	0.2 m
EU RoHS compliant	Yes
Unified glare rating CEN	20

Light Technical

Saturated Red (R9)

>50

Operating and Electrical

Input Voltage	220 to 240 V
Input Frequency	50 or 60 Hz
Initial CLO power consumption	27 W
Average CLO power consumption	27 W

Inrush current	43.8 A
Inrush time	0.0115 ms
Power Factor (Min)	0.9

Controls and Dimming

Dimmable

No

Mechanical and Housing

Housing Material	Aluminum
Reflector material	-
Optic material	Polycarbonate
Optical cover/lens material	Polycarbonate
Fixation material	-
Optical cover/lens finish	-

Overall length	207 mm
Overall width	87 mm
Overall height	125 mm
Overall diameter	80 mm
Color	Black
Dimensions (Height x Width x Depth)	125 x 87 x 207 mm (4.9 x 3.4 x 8.1 in)

Approval and Application

Ingress protection code	IP20  [ Finger-protected]
Mech. impact protection code	IK03  [ 0.3 J]

Initial Performance (IEC Compliant)

Initial luminous flux (system flux)	110 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	3000 lm/W
Init. Corr. Color Temperature	4000 K

Init. Color Rendering Index	>90
Initial chromaticity	(0.3837, 0.3828) SDCM <4
Initial input power	27 W
Power consumption tolerance	+/-10%

Over Time Performance (IEC Compliant)

Control gear failure rate at median useful life 50000 h

0.05 %

Lumen maintenance at median useful life* 50000 h

L70

Application Conditions

Ambient temperature range	-20 to +40 °C
Performance ambient temperature Tq	25 °C

Maximum dim level	Not applicable
Suitable for random switching	No

Product Data

Full product code	871951452860499
Order product name	ST151T LED30S/940 WB BK
EAN/UPC - Product	8719514528604
Order code	911401847082
Numerator - Quantity Per Pack	1

Numerator - Packs per outer box	10
Material Nr. (12NC)	911401847082
Net Weight (Piece)	0.510 kg
