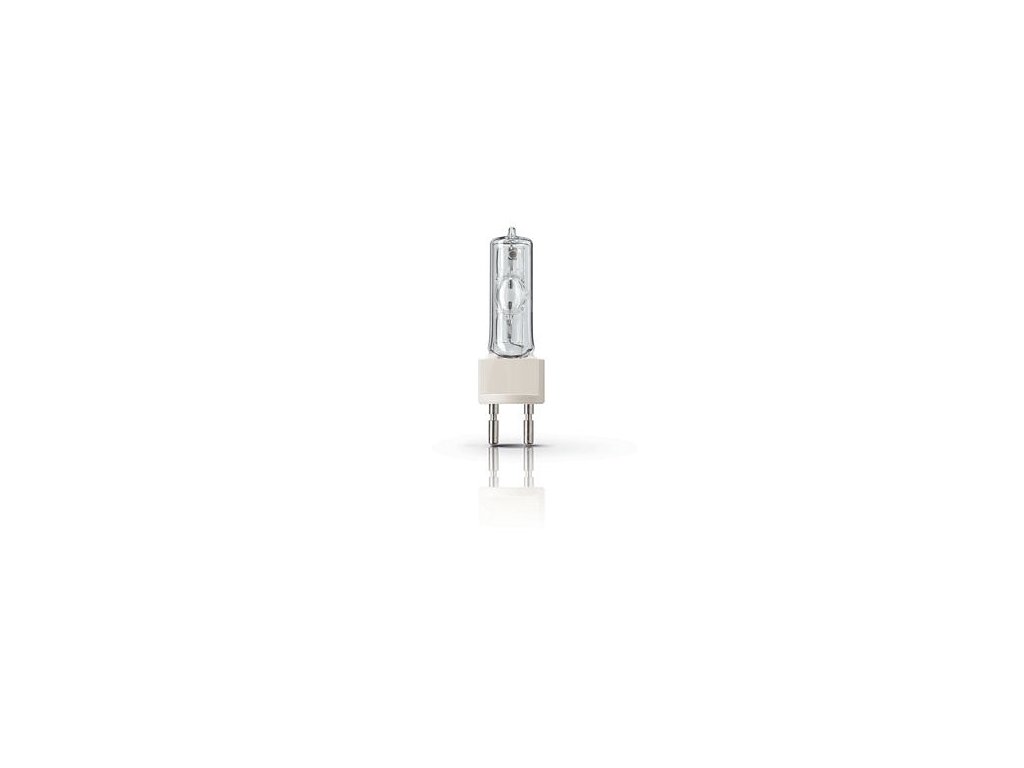

MSD 575/HR 6000K G22 Philips
Kód: 8727900916485 / 928098905114Detailní popis produktu
General Characteristics
| System Description | Hot Restrike |
| Cap-Base | G22 |
| Cap-Base Information | 20mm |
| Operating Position | any |
| Main Application | Studio/Disco |
| Life to 50% failures EM | 2000 hr |
Light Technical Characteristics
| Color Rendering Index | 75 Ra8 |
| Color Temperature | 6000 K |
| Color Temperature Technical | 5700 K |
| Chromaticity Coordinate X | 321 - |
| Chromaticity Coordinate Y | 336 - |
| Luminous Flux Lamp EM | 40000 (min), 46000 (nom) Lm |
| Luminous Efficacy Lamp EM | 80 Lm/W |
Electrical Characteristics
| Lamp Wattage | 575 W |
| Lamp Wattage Technical | 575 W |
| Lamp Current | 6.95 A |
| Ignition Supply Voltage | 207 (min) V |
| Dimmable | No |
Luminaire Design Requirements
| Pinch Temperature | 350 (max) C |
| Bulb Temperature | 600 (max) C |
Product Dimensions
| Overall Length C | 145 (max) mm |
| Diameter D | 30 (max) mm |
| Width F | 41 (min), 42 (nom), 43 (max) mm |
| Light Center Length L | 69 (min), 70 (nom), 71 (max) mm |
| Arc Length O | 8.0 mm |
Product Data
| Order code | 928098905114 |
| Full product code | 928098905114 |
| Full product name | MSD 575 HR 1CT |
Doplňkové parametry
| Kategorie: | G22 |
|---|---|
| Záruka: | 2 roky |
