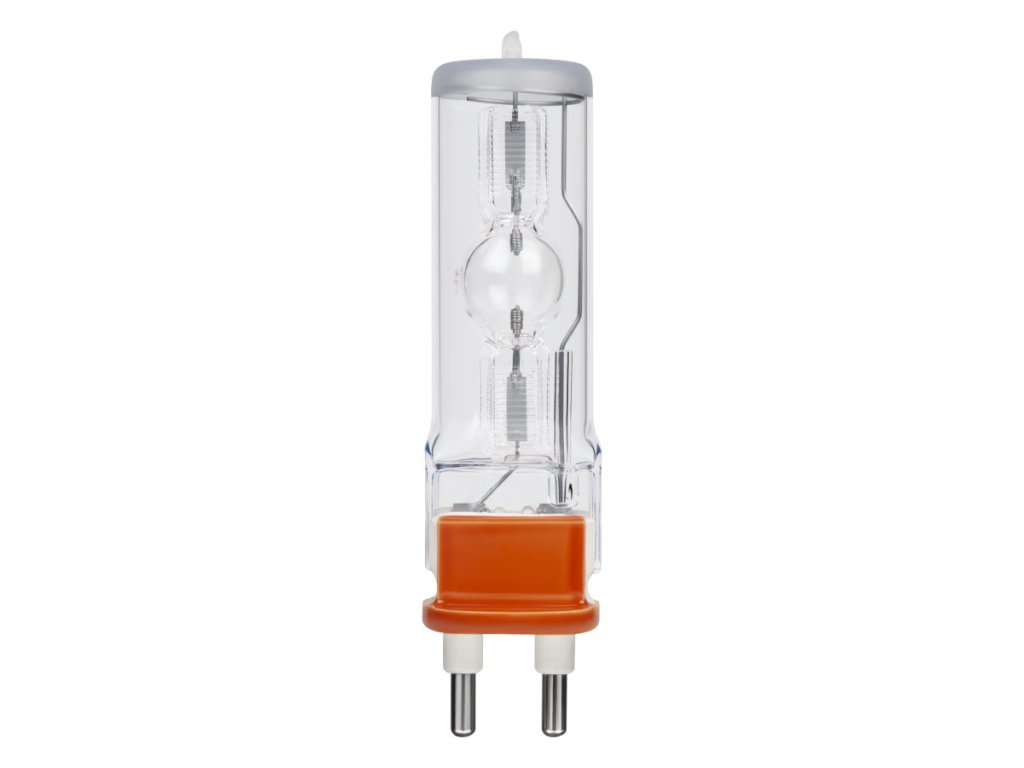

HMI 1600/DIGITAL 7250K G38 Osram
Kód: 4062172294911 / HMI 1600/DIGITALDetailní popis produktu
Technical Data
Electrical data
Nominal wattage
1600.00 W
Nominal voltage
155 V
Nominal current
10.30 A
Ignition voltage cold/hot
5/25 kVp
Photometrical data
Nominal luminous flux
144000 lm
Color temperature
7250 K
Color rendering index Ra
92
Luminous efficacy
90 lm/W
Dimensions & weight
Diameter
40.0 mm
Length
173.0 mm
Light center length (LCL)
85.0 mm
Electrode gap cold
12.5 mm
Temperatures & operating conditions
Max. permitted ambient temp. at base
450 °C
Lifespan
Lifespan
750 h
Additional product data
Base (standard designation)
G22
Capabilities
Cooling
Convection or forced
Burning position
Any
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration
05-12-2022
Primary Article Identifier
4062172128858 | 4062172294911
Declaration No. in SCIP database
In work
Packaging information
EAN |
Unit |
Piece |
Dimension l x w x h |
Weight |
Volume |
|---|---|---|---|---|---|
| 4062172294911 | VS
|
1 | 241mm x 154mm x 147mm | 323.00g | 5.44dm³ |
Doplňkové parametry
| Kategorie: | G38 |
|---|---|
| Záruka: | 2 roky |
