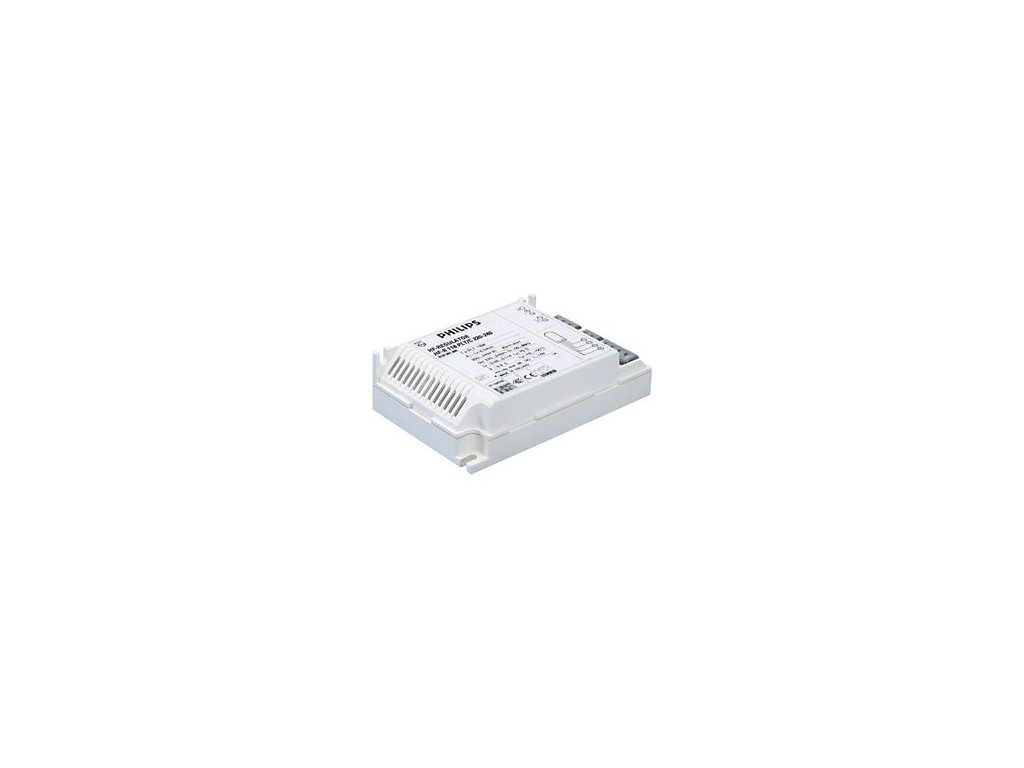

HF-R 2 26-42 PL-T/C EII 220-240V 50/60Hz Elektronický předřadník Philips
Kód: 872790080972500 / 913700626566Detailní popis produktu
Obecné informace
-
Interface1-10V
-
Rated Number of Lamps2 piece
-
Rated Ballast-Lamp Power26-42
-
Rated LamptypePL-T/C
-
Application codeEII
-
Síťové napětí220-240 V
-
Síťová frekvence50/60 Hz
-
HousingS 123x79x33
-
Ignition MethodProgrammed Start
-
Lifetime 90% surv.@Tcaselife50000 hr
-
Energy Efficiency IndexA1
Provozní údaje
-
Automatic restartYes
-
Battery voltage running lamps176-254
-
Battery voltage lamp ignition198-254 V
-
Constant wattage deviation-2%/+2%
-
Control input protectionYes
-
Inrush current Peak45 (max) A
-
Inrush current Width0.35 ms
-
Max. počet na jistič12 x
-
Earth leakage current0.5 (max) mA
-
Mains voltage safety (AC)-10%/+10%
-
Mains voltage performance (AC)-8%/+6%
-
Overvoltage protection 320Vac48 hr
-
Overvoltage protection 350Vac2 hr
-
PowerFactor 100% output power0.95 -
-
Power losses gear6.5-7.5 W
-
Regulating level power1%-100%
-
Ballast Lumen Factor0.99 -
-
Crestfactor1.7 (max) -
-
Ignition time1.5 (max) s
-
Operating frequency100 (max) kHz
-
Hum and Noise levelInaudible
Schéma zapojení
-
Cable-Cap outputwires to earth75 pF
-
Cable-Cap outputwires mutual30 pF
-
Conn.type input terminalsInsert
-
Conn.type output terminalsInsert
-
Conn.type ctrl input terminalsInsert
-
Striplength7.5-8.5 mm
-
Dual fixture Master/SlaveNot advisable [Master/Slave operation not advised]
-
Wcs Control input terminals0.50-1.50 mm2
-
Wcs Input terminals0.50-1.50 mm2
-
Wcs Output terminals0.50-1.50 mm2
Teplotní údaje
-
T-case life65 C
-
T-case maximum75 (max) C
-
T-ignition0 (min), 50 (max) C
-
T-ambient-20 (min), 50 (max) C
-
T-storage-25 (min), 80 (max) C
Rozměry produktu
-
Length A1123.0 mm
-
Fixing Hole Distance Length A2111.0 mm
-
Width B179.0 mm
-
Fixing Hole Distance Width B267.0 mm
-
Height C133.0 mm
-
Fixing Hole Diameter D14.5 mm
Aplikační charakteristika
-
EMI 9kHz .. 30 MHzEN 55015
-
EMI 30 MHz .. 1000MHzEN 55022 level B [Level = Class]
-
Safety StandardIEC 61347-2-3
-
Performance StandardIEC 60929
-
Quality StandardISO 9000:2000
-
Environmental StandardISO 14001
-
Harmonic current emissionsIEC 61000-3-2
-
EMC ImmunityIEC 61547
-
VibrationsIEC 68-2-6 Fc
-
BumpsIEC 68-2-29 Eb
-
HumidityEN 61347-2-3 clause 11
-
Approval marksENEC / VDE-EMV
-
CE markingYes
-
Temperature marking110 [Yes]
-
Emergency standardIEC 60598-2-22
Produktové informace
-
Objednávkové císlo809725 00
-
Kód produktu872790080972500
Doplňkové parametry
Kategorie: | PL-T/C - HF-R |
---|---|
Záruka: | 2 roky |
