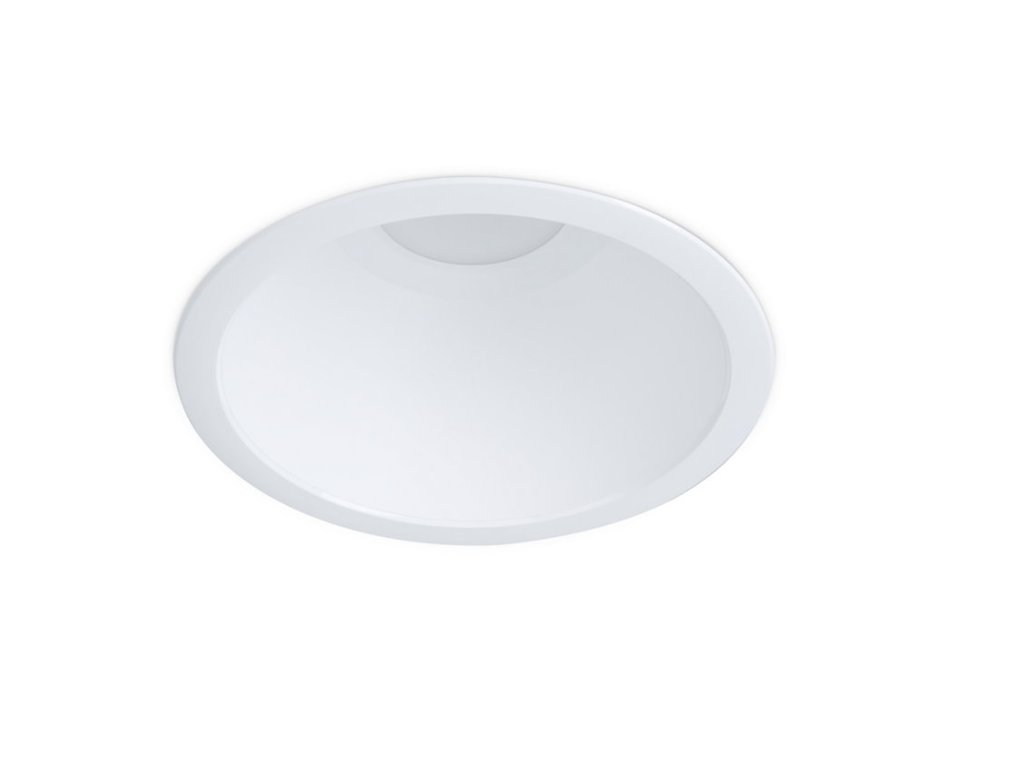

DN142B LED20S/830 PSU-E WR 3000K 2350Lm G5 CoreLine Downlight Philips
Kód: 872016950297099 / 911401551832Detailní popis produktu
Operating and Electrical
| Inrush current |
10 A
|
| Line Frequency |
50 to 60 Hz
|
| Input Voltage |
220-240 V
|
| Initial CLO power consumption |
- W W
|
| Number of products on MCB of 16 A type B |
100
|
| Power Consumption |
19.2 W
|
| Connection |
Push-in connector 4-pole
|
| Cable |
2 cables 0.15m with connectors 2-pole
|
| Average CLO power consumption |
- W W
|
| Input Frequency |
50 to 60 Hz
|
| Inrush time |
0.002 ms
|
| Power Factor (Fraction) |
0.9
|
Over Time Performance (IEC Compliant)
| Lumen maintenance at median useful life* 50000 h |
L80
|
| Control gear failure rate at median useful life 50000 h |
5 %
|
Product Data
| EAN/UPC - Case |
8720169503298
|
| Numerator - Quantity Per Pack |
1
|
| Full product name |
DN142B 20S/830 PSU-E WR
|
| Order code |
911401551832
|
| Full product code |
872016950297099
|
| Material number (12NC) |
911401551832
|
| Order product name |
DN142B 20S/830 PSU-E WR
|
| Numerator - Packs per outer box |
6
|
Approval and Application
| EU RoHS compliant |
Yes
|
| Photobiological risk |
Photobiological risk group 1 @ 200mm to EN62471
|
| Flammability mark |
For mounting on normally flammable surfaces
|
| Protection class IEC |
Safety class II
|
| Ingress protection code |
IP20 [Finger-protected]
|
| Warranty period |
5 years
|
| Mech. impact protection code |
IK02 [0.2 J standard]
|
| CE mark |
CE mark
|
| Sustainability rating |
-
|
| Glow-wire test |
Temperature 650 °C, duration 30 s
|
| ENEC mark |
-
|
Controls and Dimming
| Driver/power unit/transformer |
Power supply unit (ON/OFF)
|
| Constant light output |
No
|
| Control interface |
-
|
| Dimmable |
No
|
General Information
| Light source replaceable |
No
|
| Value ladder |
Performance
|
| Driver included |
Yes
|
| Number of gear units |
1 unit
|
| Lighting Technology |
LED
|
Mechanical and Housing
| Overall diameter |
216 mm
|
| Overall length |
0 mm
|
| Reflector material |
Polycarbonate
|
| Optic material |
Polycarbonate
|
| Overall width |
0 mm
|
| Housing Color |
White RAL9010
|
| Optical cover/lens material |
Polycarbonate
|
| Dimensions (Height x Width x Depth) |
107 x 0 x 0 mm
|
| Optical cover/lens finish |
Frosted
|
| Fixation material |
-
|
| Housing Material |
Polycarbonate
|
| Overall height |
107 mm
|
Application Conditions
| Suitable for random switching |
Yes
|
| Maximum dim level |
Not applicable
|
| Performance ambient temperature Tq |
25 °C
|
Initial Performance (IEC Compliant)
| Initial chromaticity |
(0.435,0.404) SDCM≦5
|
| Power consumption tolerance |
+/-10%
|
| Luminous flux tolerance |
+/-10%
|
Temperature
| Ambient temperature range |
-20 to +40 °C
|
Light Technical
| Luminous Flux |
2,350 lumen
|
| Stroboscopic effect value (SVM) |
1
|
| Beam angle of light source |
- degree(s)
|
| Saturated Red (R9) |
<50
|
| Correlated Color Temperature (Nom) |
3000 K
|
| Optic type |
White reflector without louver
|
| Flickering value (PstLM) |
0.5
|
| Luminaire light beam spread |
84°
|
| Unified glare rating CEN |
25
|
| Color rendering index (CRI) |
≥80
|
| Luminous Efficacy (rated) (Nom) |
122 lm/W
|
| Light source color |
830 warm white
|
