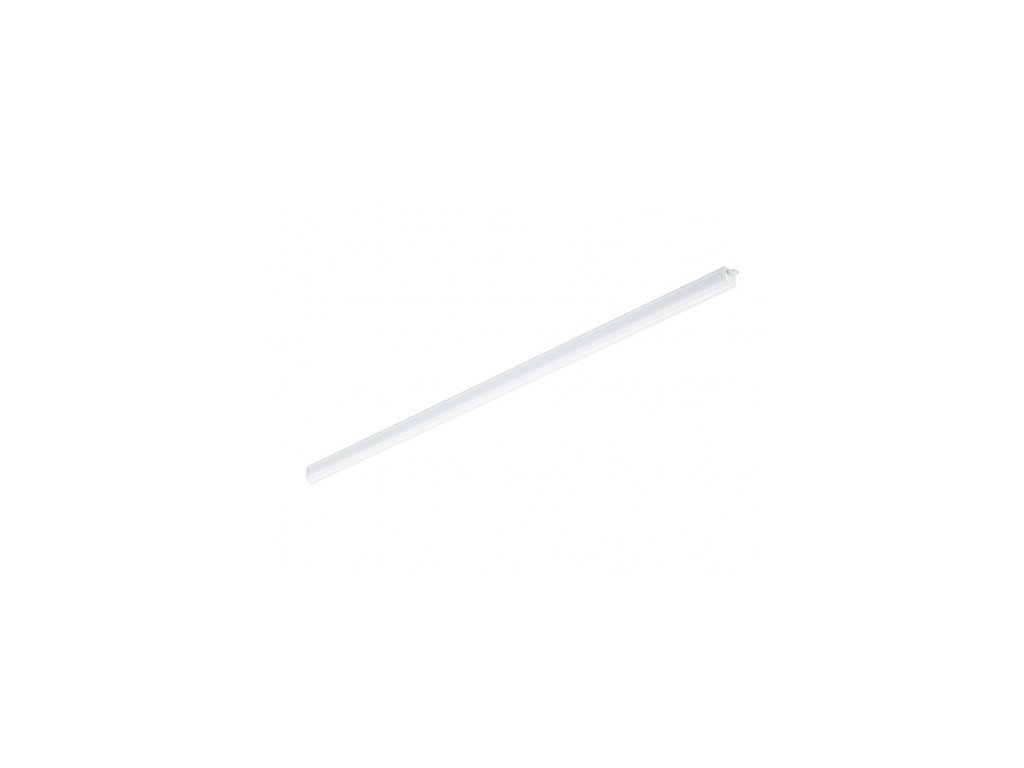

BN021C LED25S/840 L1500 150cm 4000K 2600Lm LED lišta Ledinaire Batten Gen3 Philips

General Information

Light source color	840 neutral white
Cap-Base	G13  [ Medium Bi-Pin Fluorescent]
Light source replaceable	No
Number of gear units	1 unit
Driver/power unit/transformer	Power supply unit
Driver included	Yes
Optic type	Very wide beam
Luminaire light beam spread	168°
Connection	Plug-in connector 2-pole
Cable	-
Protection class IEC	Safety class II
Glow-wire test	Temperature 650 °C, duration 30 s

Flammability mark	For mounting on normally flammable surfaces
CE mark	CE mark
ENEC mark	-
Warranty period	3 years
Constant light output	No
Number of products on MCB of 16 A type B	10
Photobiological risk	Photobiological risk group 0 @ 200mm to EN62471
Photobiological risk specification	0.2 m
EU RoHS compliant	Yes
Unified glare rating CEN	27

Light Technical

Saturated Red (R9)

<50

Operating and Electrical

Input Voltage	220 to 240 V
Input Frequency	50 or 60 Hz
Inrush current	16.8 A

Inrush time	0.001 ms
Power Factor (Min)	0.9

Controls and Dimming

Dimmable

No

Mechanical and Housing

Housing Material	Polycarbonate
Reflector material	Polycarbonate
Optic material	Polycarbonate
Optical cover/lens material	Polycarbonate
Fixation material	-
Optical cover/lens finish	Opal

Overall length	1486 mm
Overall width	28.4 mm
Overall height	35.7 mm
Color	White
Dimensions (Height x Width x Depth)	36 x 28 x 1486 mm (1.4 x 1.1 x 58.5 in)

Approval and Application

Ingress protection code	IP20  [ Finger-protected]
Mech. impact protection code	IK02  [ 0.2 J standard]

Initial Performance (IEC Compliant)

Initial luminous flux (system flux)	2600 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	108.3 lm/W
Init. Corr. Color Temperature	4000 K

Init. Color Rendering Index	>80
Initial chromaticity	0.38, 0.38, SDCM≤5
Initial input power	24 W
Power consumption tolerance	+/-10%

Over Time Performance (IEC Compliant)

Control gear failure rate at median useful life 50000 h

7.5 %

Lumen maintenance at median useful life* 50000 h

L65

Application Conditions

Ambient temperature range	-20 to +40 °C
Performance ambient temperature Tq	25 °C

Maximum dim level	Not applicable
Suitable for random switching	Not applicable

Product Data

Full product code	871951452792899
Order product name	BN021C LED25S/840 L1500
EAN/UPC - Product	8719514527928
Order code	911401842582
Numerator - Quantity Per Pack	1

Numerator - Packs per outer box	40
Material Nr. (12NC)	911401842582
Net Weight (Piece)	0.310 kg
