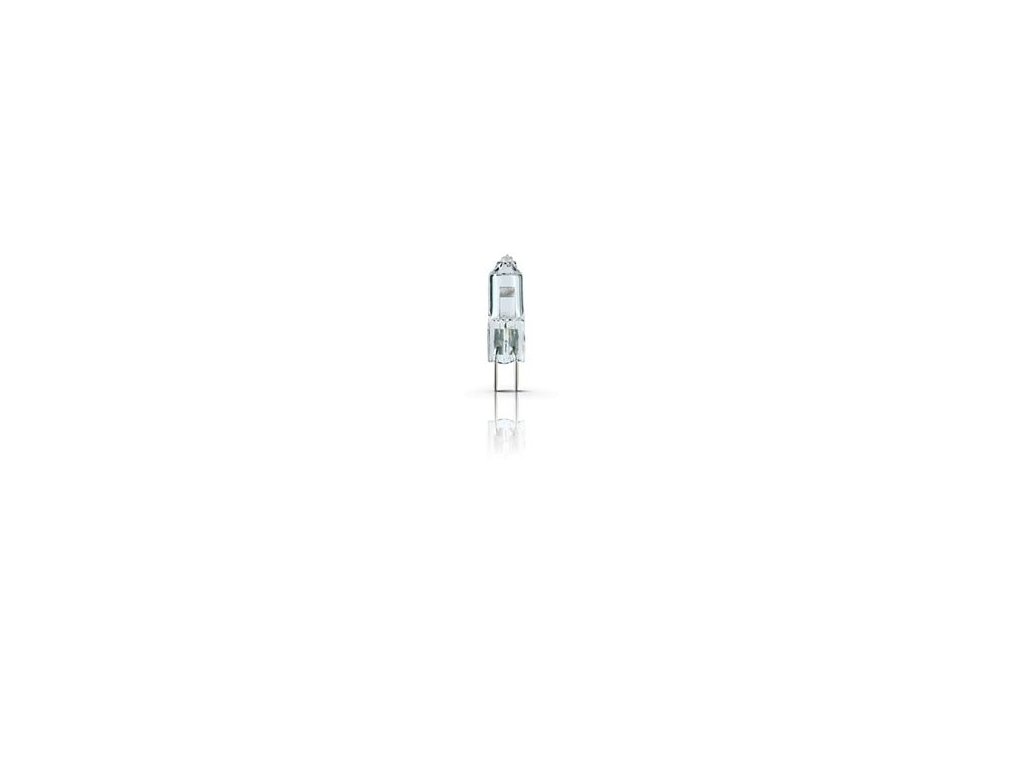

7724 100W GY6,35 12V EVA M/28 Philips

Detailní popis produktu

• General Characteristics
Philips Code 7724
ANSI Code EVA
LIF Code M28
Cap-Base GY6.35
Bulb Material Quartz-UV Open
Filament Shape Flat
Operating Position s90
Main Application Projection
Life to 50% failures 2000 hr
• Electrical Characteristics
Lamp Wattage 100 W
Voltage 12 V
• Light Technical Characteristics
Color Rendering
Index
100 Ra8
Color Temperature
Technical
3100 K
Luminous Flux Lamp 2550 Lm
• Product Dimensions
Overall Length C 44 (max) mm
Diameter D 11.5 (max) mm
Light Center Length
L
29.75 (min), 30 (nom), 30.25 (max)
mm
Pin Diameter P 1.20 (min), 1.25 (nom), 1.30 (max)
mm
Filament Dimensions
(WxH) [mm]
4.8x3.0
• Luminaire Design Requirements
Pinch Temperature 350 (max) C
Bulb Temperature 900 (max) C
